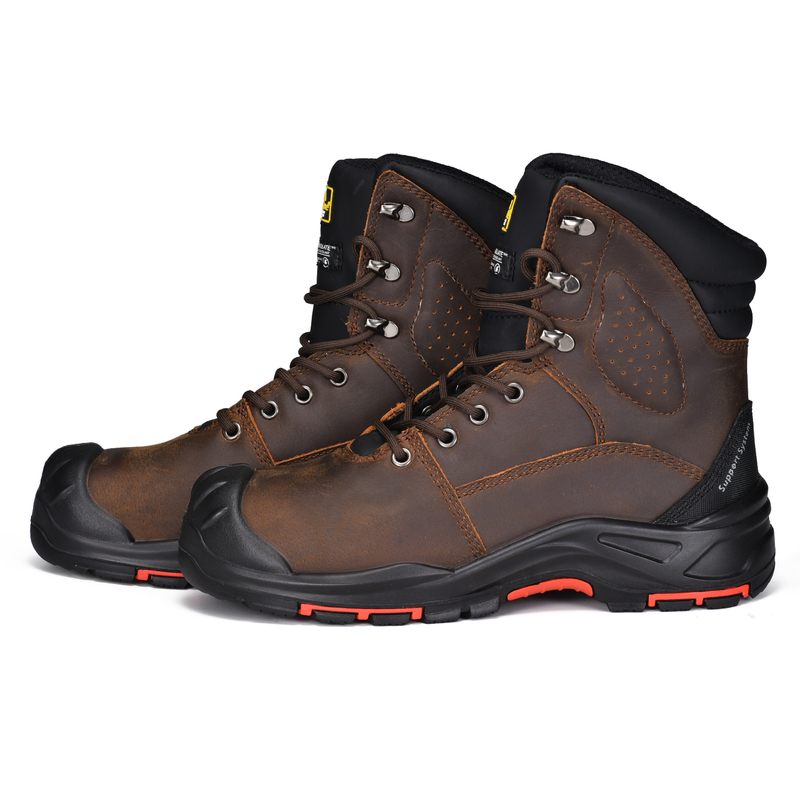

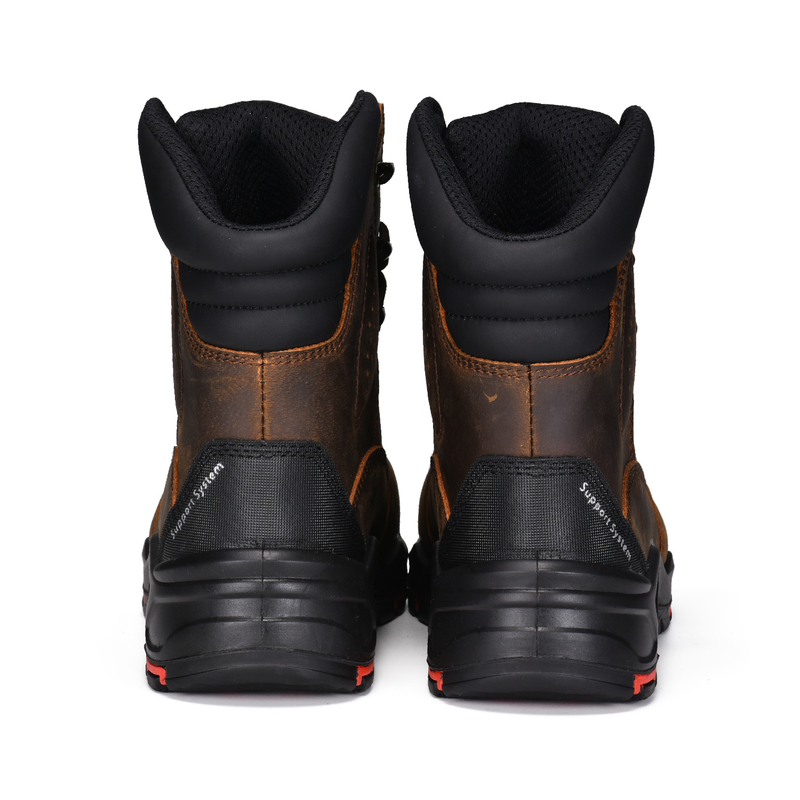

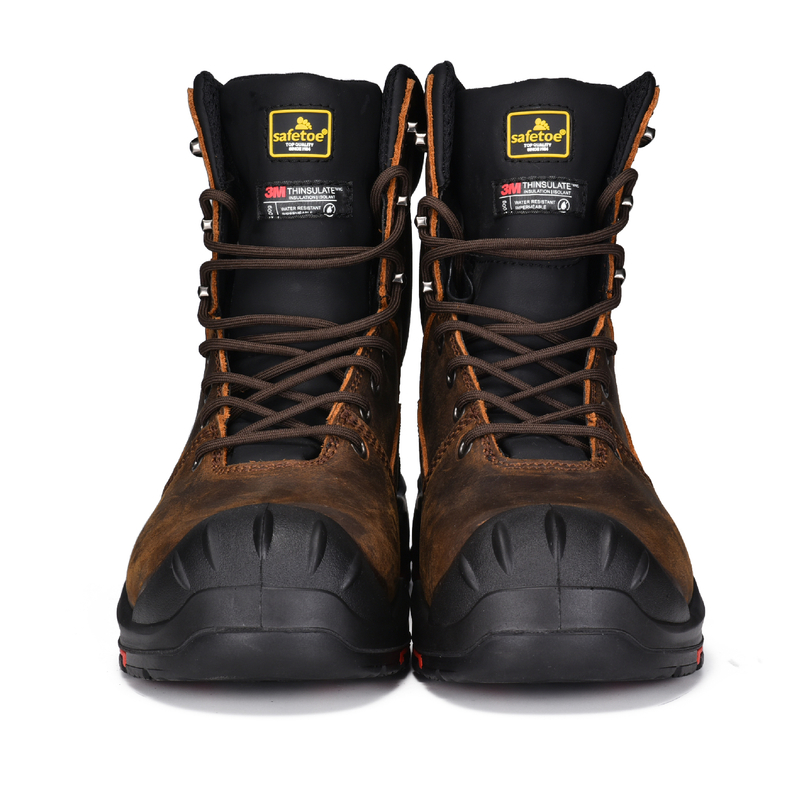

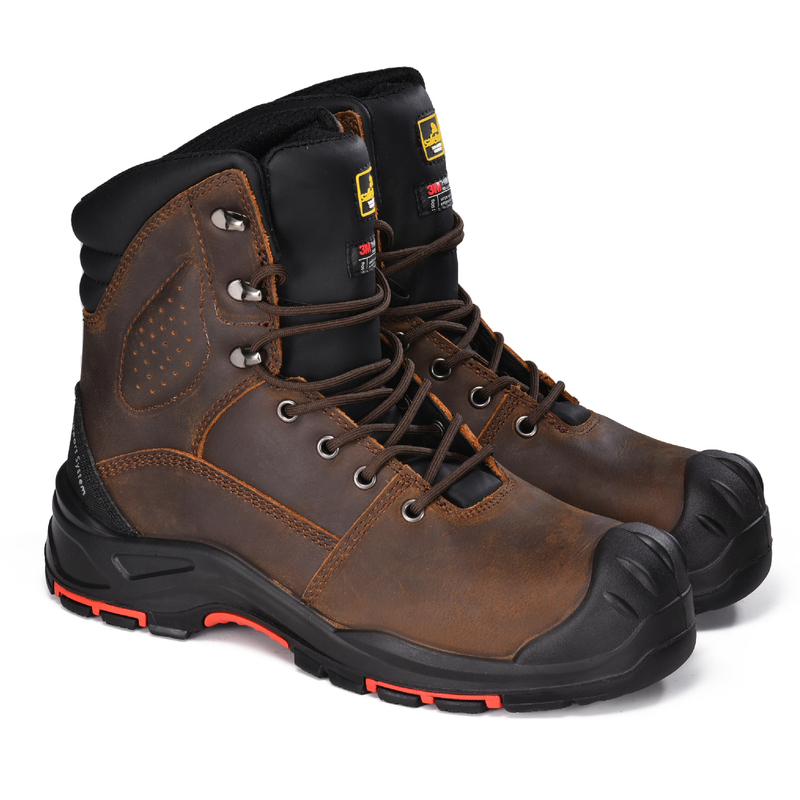

H-9537
Safetoe
Size: | |
---|---|
Availability: | |
Quantity: | |
1. Upper : | Full Grain Crazy Horse Cow Leather |
2. Lining : | Breathable Sandwich Air Mesh |
3. Insole : | Comfortable EVA Coated Mesh |

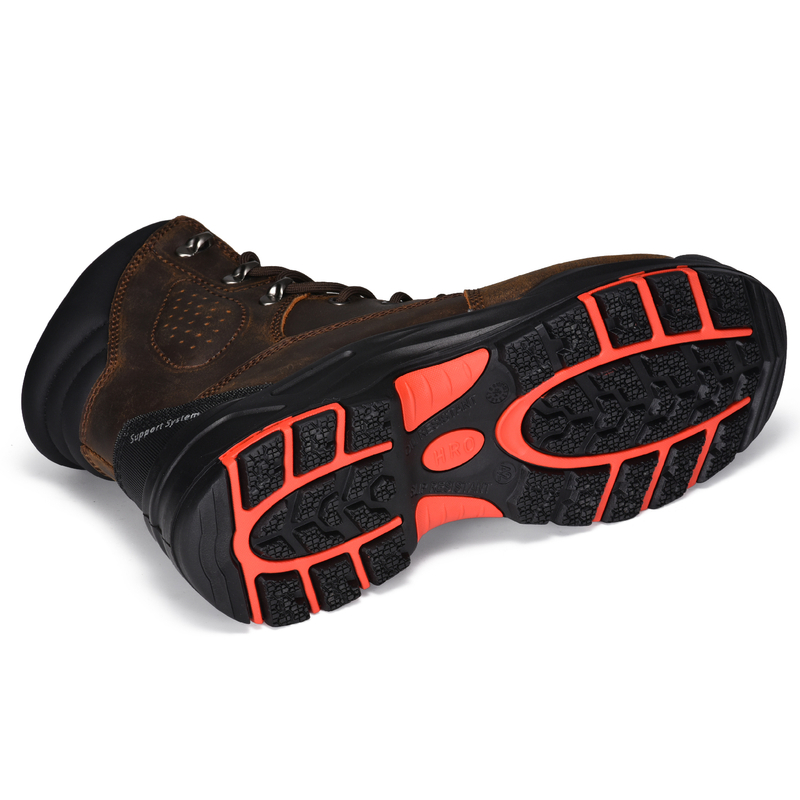

4. Outsole : | PU/Rubber Injection (HRO 300°) |
5. Toecap : | Composite Toecap |
6. Penetration : | Kevlar Midsole Plate |
7. Size : | EU 37-47#, UK 3-13#, US 4-14# |
8. Standard: | CE EN ISO 20345:2011 S3 SRC/HRO |
9. Application : | Construction, Warehouse, Farming, Gardening, Logistics, Mechanics, Glasses Installation, Factory Workshop, Garage, Car Wash, etc. |
1. Upper : | Full Grain Crazy Horse Cow Leather |
2. Lining : | Breathable Sandwich Air Mesh |
3. Insole : | Comfortable EVA Coated Mesh |
4. Outsole : | PU/Rubber Injection (HRO 300°) |
5. Toecap : | Composite Toecap |
6. Penetration : | Kevlar Midsole Plate |
7. Size : | EU 37-47#, UK 3-13#, US 4-14# |
8. Standard: | CE EN ISO 20345:2011 S3 SRC/HRO |
9. Application : | Construction, Warehouse, Farming, Gardening, Logistics, Mechanics, Glasses Installation, Factory Workshop, Garage, Car Wash, etc. |
√ Upper, Lining & Bonding Strength Test Result | Result |
Leather Tear Strength ≥ | 120.0 Newtons |
Leather Tensile Properties ≥ | 15.0 N/mm² |
Lining Tear Strength ≥ | 15.0 N/mm |
Bonding Strength ≥ | 4.0 N/mm |
√ Protection with Safety Toecap (200 Joules) | Result |
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm | PASS |
√ Penetration Resistance (1100 N) | Result |
Penetration Resistance Force ≥ 1100 N | PASS |
√ Protection With Slip Resistant (SRC) | Result |
Test Requirement : SRA (Eurotile 2+Nal S) Forward Heel Slip ≥0.28 & Forward Flat Slip: ≥0.32 SRB (Steel Floor+Glycerine) Forward Heel Slip ≥0.13 & Forward Flat Slip: ≥0.18 | PASS |
Standards : EN ISO20344:2011(5.11) , SRC Means both SRA & SRB requirements are fulfilled. | |
√ Protection With Anti-Static | Result |
Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute | PASS |
Standards : ENISO 20344:2011(5.10) Dry Humility (30±5) & Wet Humility (85±5) | |
√ Protection Resistant to Fuel Oil | Result |
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) | PASS |
Standards : ENISO 20344:2011(8.6.1) |
√ Sole Bonding Strength Test | |
• EN ISO 20344:2011, 5.2 (Between Upper & Sole) | |
• Average Test Result 5.8±5 (N/mm) |
√ Upper, Lining & Bonding Strength Test Result | Result |
Leather Tear Strength ≥ | 120.0 Newtons |
Leather Tensile Properties ≥ | 15.0 N/mm² |
Lining Tear Strength ≥ | 15.0 N/mm |
Bonding Strength ≥ | 4.0 N/mm |
√ Protection with Safety Toecap (200 Joules) | Result |
Impact Resistance: Impact Energy: 200 ± 4 Joules, Internal Height Clearence ≥ 14mm Compression Resistance: Compression Force: (15 ± 0.1) KN, Internal Height Clearence ≥ 14mm | PASS |
√ Penetration Resistance (1100 N) | Result |
Penetration Resistance Force ≥ 1100 N | PASS |
√ Protection With Slip Resistant (SRC) | Result |
Test Requirement : SRA (Eurotile 2+Nal S) Forward Heel Slip ≥0.28 & Forward Flat Slip: ≥0.32 SRB (Steel Floor+Glycerine) Forward Heel Slip ≥0.13 & Forward Flat Slip: ≥0.18 | PASS |
Standards : EN ISO20344:2011(5.11) , SRC Means both SRA & SRB requirements are fulfilled. | |
√ Protection With Anti-Static | Result |
Test Requirement : Anti-static 100KΩ-1000MΩ, Test Voltage: 100±2 V DC, Test Period: 1 Minute | PASS |
Standards : ENISO 20344:2011(5.10) Dry Humility (30±5) & Wet Humility (85±5) | |
√ Protection Resistant to Fuel Oil | Result |
Test Requirement : Change in Volume and Change in Hardness (Outsole) is No More Than +12%(*) | PASS |
Standards : ENISO 20344:2011(8.6.1) |
√ Sole Bonding Strength Test | |
• EN ISO 20344:2011, 5.2 (Between Upper & Sole) | |
• Average Test Result 5.8±5 (N/mm) |
SAFETOE Standard Package Instruction (Average 42# for Reference) | |
Shoes Weight : 1.5-1.6 KGS /Pair | Carton Weight : 17-18 KGS /Carton |
1 Pair / Color Box , Dimensions : 32×30×12CM | 10 Pair / Carton , Dimensions : 62×62×33CM |
User Instructions:
1) RECOMMENDED TO USE: Mechanics, Construction, Logistics, Workshop, Farming, Glasses Installation, Garden, Oil & Gas, Chemical Factory, etc.
2) LIMITATION TO USE: The selected footwear must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.
3) FITTING & SIZE: All footwear is marked with standard size on the tongue label. Some are with different size comparisons, such as EU size, UK size, US size, etc. Please wear footwear in a suitable size Footwear that is too loose or too tight may not provide the optimum level of protection.
4) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions, and in clean, covered, and ventilated premises.
5) CLEANING: Clean footwear regularly with high-quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.
SAFETOE Standard Package Instruction (Average 42# for Reference) | |
Shoes Weight : 1.5-1.6 KGS /Pair | Carton Weight : 17-18 KGS /Carton |
1 Pair / Color Box , Dimensions : 32×30×12CM | 10 Pair / Carton , Dimensions : 62×62×33CM |
User Instructions:
1) RECOMMENDED TO USE: Mechanics, Construction, Logistics, Workshop, Farming, Glasses Installation, Garden, Oil & Gas, Chemical Factory, etc.
2) LIMITATION TO USE: The selected footwear must be suitable for the right workplaces. The protection against risks or hazards which are not mentioned in this document is not warranted.
3) FITTING & SIZE: All footwear is marked with standard size on the tongue label. Some are with different size comparisons, such as EU size, UK size, US size, etc. Please wear footwear in a suitable size Footwear that is too loose or too tight may not provide the optimum level of protection.
4) STORAGE: Keep the footwear in its original packaging, under ordinary temperature, non-humidity conditions, and in clean, covered, and ventilated premises.
5) CLEANING: Clean footwear regularly with high-quality cleaning treatments recommended as suitable for the purpose. Don't use caustic or corrosive cleaning agents.
